Pvc Gypsum Board Veneer Machine

The PVC plaster veneer production line is also called plaster laminating board production line and three anti-plate production line, including laminating machine, sawing machine, edge wrapping machine, heat shrink packaging machine and stacker.

Quantity:

Product Description

List of equipment for producing 6 million square meters of plaster veneer production line (24 hours)

Device name Configuration Quantity size
Automatic upper and lower board system 01 Lifting platform 2 1220*2440mm
02 Hydraulic station 2
03 Automatic push board 1
04 Platform acceleration system 1
05 Platform shelf 1
Laminating machine 01 Host 1 1170*1550*1480
02 Board transport 1 3260*1580*710
03 Board delivery 1 2800*1580*710
Slitting saw 01 Board transport 1 2900*1400*720
02 3-axis saw 1 1962*700*1320
03 Transition shelf 1 2800*1700*720
04 Traverse shelf 1 3200*1700*720
05 5-axis saw 1 3160*700*1320
06 Board shelf 1 2700*900*720
07 Automatic board shelf 1 2900*2100*1300
Board connection shelf 01 Palletizer 1 1200*600mm
02 Hydraulic station 1
03 Conveyor 3
Right angle wrapping machine 01 Vertical edge wrapping machine 1 4300*1000*720
02 Horizontal edge wrapping machine 1 3000*1000*720
Automatic code board 01 Post-package stacking device 1
02 Roller conveyor 1
Automatic packaging 01 Board transport 1 2900*1100*700
02 Packing Machine 1 2400*1000*1600
03 Heat shrink oven 1 3400*1150*1200
Finished product stacking system 01 Hydraulic station 1
02 Stacking host 1
03 Lift 1
04 Pusher 1
Dust removal system 01 Bag dust collector 1 1500*1500*4200
02 High pressure fan 1
03 skeleton 64
04 Vacuum hose 18
05 Vacuum pipe 5
06 Dust bag 64
07 Pulse controller 1
Electronic control system 01 PLC automatic control 1
Note: The whole production line bearing adopts domestic famous brand bearing, PLC adopts Siemens brand, the main low-voltage electrical components adopt Zhengtai/Delixi/brand, and the motor adopts domestic famous brand.

Employment: 1 forklift worker, one console, one person with artificial film, one person after sawing belt conveyor, one person with edging machine, one person with heat shrink packaging machine. A cleaning worker.

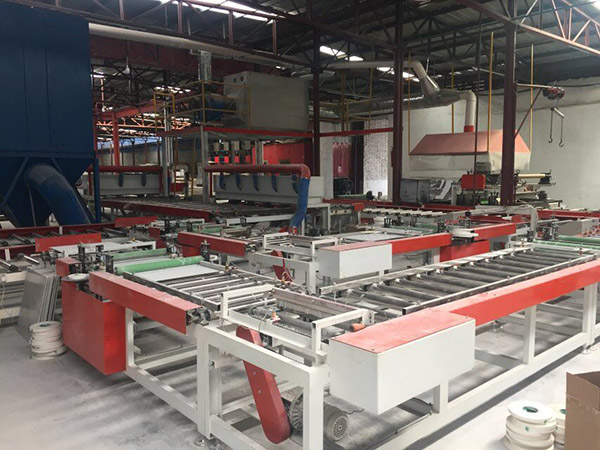

PVC plaster veneer production line

Production line features:

PVC plaster veneer production line: with automatic coating, automatic veneer, automatic drying, adjustable speed, etc., the production line is suitable for the surface of gypsum board, glass magnesium board, plywood, plywood, particle board, MDF, fire board, etc. Processing, can be attached to PVC film, aluminum foil paper, wood grain paper, Boeing film and other materials.

Related product keywords:pvc gypsum board veneer Production Line

Features:

The PVC gypsum veneer production line produces fireproof, waterproof, environmentally friendly, soundproof, energy-saving, elegant, non-deformable, high-strength, wear-resistant, long-life and other decorative features up to high-grade standards, PVC plaster veneer can be based on actual needs Arbitrary sawing, planing, nailing and sticking are quick and easy to install and easy to repair.

Advanced technology, widely used in hotels, restaurants, shopping malls, theaters, dance halls, stations, auditoriums, offices, living room office buildings, electronic equipment room, precision instrument room and factory or residential interior decoration.

The PVC gypsum veneer slitting machine divides the affixed plate into pieces, and uses the small piece of plate which is made into a fixed size according to the user's requirements. First, the plate is placed in the conveying table, and then the first cutting is performed, and then sent through the conveying table. The second cutting, and then the plate forming, can be equipped with pulsed dust removal system according to user requirements. The PVC plaster veneer slitting machine has high automation, simple operation and large production capacity.

The gypsum board veneer machine can carry out deep processing on the gypsum board. The equipment has the advantages of low energy consumption, high cost performance, safety and convenience, accurate size, etc. Welcome to call us to negotiate!

Fully automatic computer program control, automatic glue coating, heating veneer. Drying. Two cold pressing, three hot pressing in one, relying on chain and sprocket transmission, compact and reasonable structure, convenient operation and adjustable speed.

Applicable to the surface veneer of fireproof board, and can also deepen the veneer of various wooden boards (plywood, MDF, particleboard), such as wood grain paper, PVC Boeing, paint-free paper, polymer film, etc. Luxurious decorative panels of color. Profit doubled, suitable for furniture factories, board factories, township enterprises and self-employed households. The equipment is divided into large, medium and small models, and can be customized according to customer requirements.

PVC plaster veneer production line: It has automatic gluing, automatic veneering, automatic drying, adjustable speed, etc. It is suitable for the surface of gypsum board, glass magnesium board, plywood, plywood, particle board, MDF, fireproof board, etc. Processing, can be attached to PVC film, aluminum foil paper, wood grain paper, Boeing film and other materials.

The PVC gypsum veneer production line produces fireproof, waterproof, environmentally friendly, soundproof, energy-saving, elegant, non-deformable, high-strength, wear-resistant, long-life and other decorative features up to high-grade standards, PVC plaster veneer can be based on actual needs Arbitrary sawing, planing, nailing and sticking are quick and easy to install and easy to repair.

Advanced technology, widely used in hotels, restaurants, shopping malls, theaters, dance halls, stations, auditoriums, offices, living room office buildings, electronic equipment room, precision instrument room and factory or residential interior decoration.

The equipment is large, medium and small. The company implements one-stop service of technology and equipment installation. The equipment is excellent, the technology is exquisite, and the technical specifications of the products are advanced.

Related product keywords:pvc gypsum board veneer Production Line

pvc gypsum board veneer machine Manufacturers pvc gypsum board veneer machine For Sale

The company attaches great importance to the friendly cooperation of customers, guarantees the quality and service, cherishes the honor, thus gains the trust and support of customers, cooperates extensively with friends, shares prosperity, and becomes The most sincere pursuit of sude people,keywords:Double-sided Laminating Machine WholesaleDouble-sided Laminating Machine ManufacturerGypsum Cornice Machine CostCheap Gypsum cutting machinepvc gypsum board veneer machine For SaleCalcium Silicate Board Equipment Factorygypsum cutting machine manufacturerCalcium Silicate Board Equipment gypsum cutting machine for sale.
